PRODUCT CATALOG

OCTG TUBULARS

Advanced surface alloy OCTG products for Canadian oil and gas operations. All products comply with API 5CT/5L standards and are available from our Alberta storage facilities.

Corrosion Resistant

ZteenSS Tubing

ZteenSS tubing features an advanced alloy layer (100–500μm) that provides comprehensive protection against multi-media corrosion. The metallurgical bond ensures the layer remains intact under the most demanding downhole conditions.

KEY FEATURES

Alloy layer thickness: 100–500μm

Surface hardness: >400HV

Hydrogen permeation resistance: >86,400s

CO₂ corrosion rate: 0.77 mm/a (vs 44.58 for J55)

High temperature resistance: 700°C / 1,292°F

Cathodic protection for exposed carbon steel

Recyclable — reprocessable after service

API 5CT/5L compliant

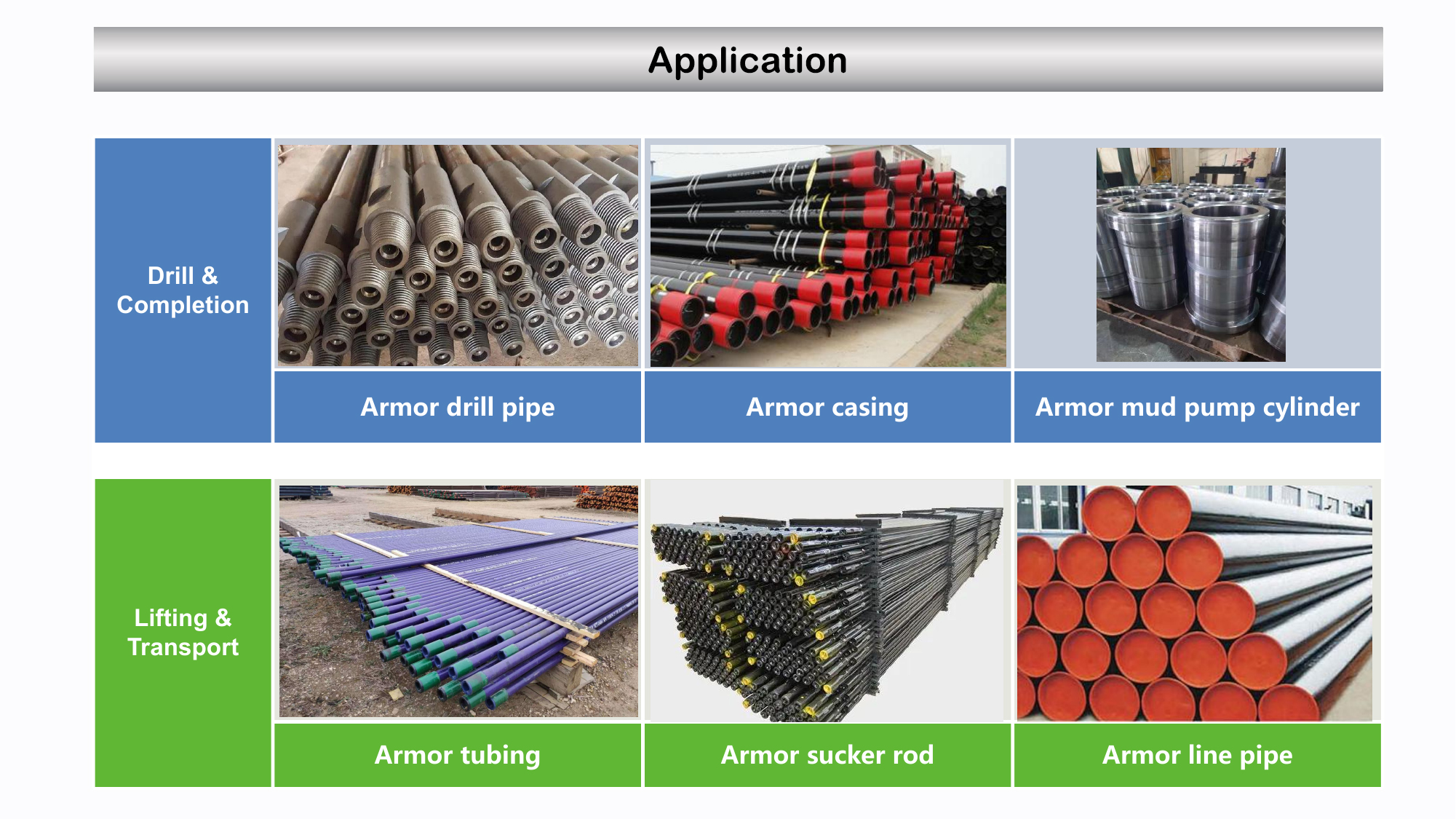

APPLICATIONS

H₂S-rich wellsHigh CO₂ environmentsHigh salinity water injectionDeep wells with high temperatureShale gas completions

SPECIFICATIONS

SPEC	OD (mm)	WT (kg/m)
2-3/8"	60.32	6.99
2-7/8"	73.02	9.67
3-1/2"	88.90	13.84
4-1/2"	114.30	18.97

Steel Grade: J55, N80, L80, P110

Layer Thickness: >100μm

Structure: ID + OD

AVAILABILITY

In-stock: L80 (300m), J55 (500m) in Alberta
Custom orders: ~3 month lead time

FIELD APPLICATION

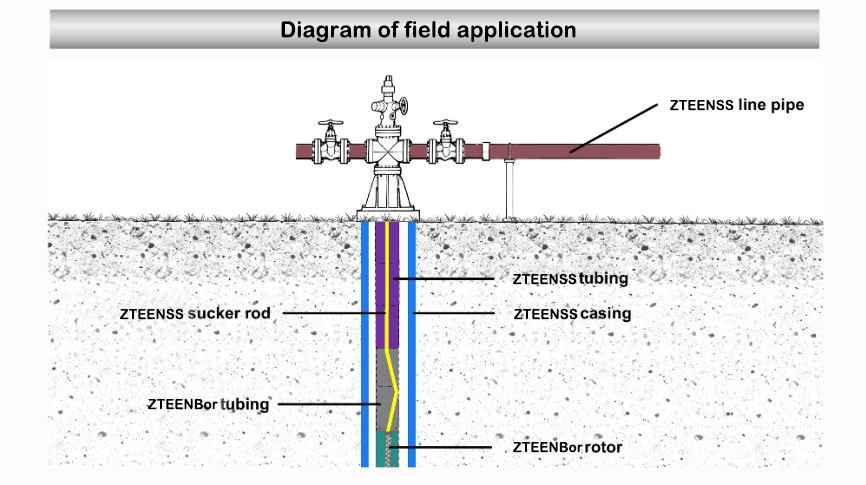

DOWNHOLE DEPLOYMENT DIAGRAM
